Precision-Engineered Architectural Door & Window Systems
High-performance pivot entries, thermal break fenestrations, and hurricane-rated assemblies customized for global estate developments and B2B projects.
ZEKIN Customized Modern Style Aluminum Entrance Door Exterior Entry Front Solid Pivot Door for Villa Front Entry Door Smart Lock
Send an Inquiry
Modern Exterior Front Doors Aluminum Doors Windows Single Double Interior External French Swing Hinged Casement Door Waterproof
Send an Inquiry

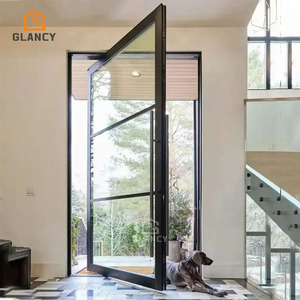

Customized Size Modern Pivot Doors Aluminium External Glass Door Single Patio Door Glass Outdoor For Houses Villa US Australia
Send an Inquiry

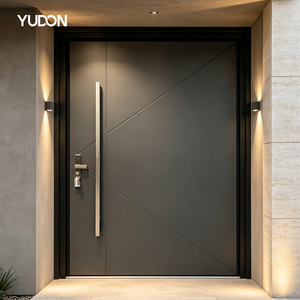

YUDON DOOR Main Entrance Pivot Door Entry Door Pivot Door with Frame Matte Gray Finish Custom Size Soundproof for Villa
Send an Inquiry
Single Opening Welded Security Screen Door with 304 Stainless Steel Mesh Multi Point Lock for Household Entryway
Send an Inquiry
Bespoke Aluminum Entrance Doors and Window Systems for Commercial Buildings, Offices, Hotels and Hospitality Projects
Send an Inquiry
Aluminum Security French Door-Waterproof Exterior Entry Door For Hotel Apartment Villa Use
Send an Inquiry

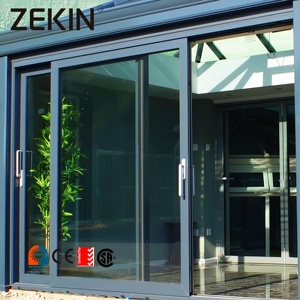

Customized Aluminum Double Glass Sliding Door Energy Efficient NFRC AS2047 Certification Aluminum Heavy Duty Lift Sliding Doors
Send an InquiryDecoding the Shift to Oversized Aluminium Pivot Door Systems in Global Architecture
As luxury residential developments, commercial headquarters, and high-end hospitality projects push the boundaries of architectural scale, traditional side-hinged entrance doors hit physical and structural limits. Modern architectural design increasingly demands oversized clear openings exceeding 3.5 meters in height and 2.0 meters in width—a structural threshold where conventional butt hinges fail due to rotational torque, frame sag, and joint fatigue.
Metallurgical Precision & Alloy Selection
China’s top tier manufacturers utilize prime-grade 6063-T6 and 6060-T66 extruded aluminum alloys. These extrusions yield ultimate tensile strengths exceeding 205 MPa, allowing ultra-slim profile sightlines without sacrificing structural rigidity against intense wind shear.
- Wall thickness options from 2.5mm to 4.0mm heavy-gauge structural walls.
- High-density PA66-GF25 polyamide thermal barrier strips.
- Fluorocarbon (PVDF) 3-coat surface finishes meeting AAMA 2605 specifications.
Mechanical Kinematics & Pivot Physics
Unlike traditional hinges that concentrate weight on vertical side jambs, heavy-duty pivot door systems transfer leaf mass directly to the structural floor substrate. Advanced bottom hydraulic floor closers support leaf weights up to 800 kilograms (1,760 lbs) with zero operational deflection.
- Adjustable top and bottom offset pivot pin axes (100mm to 500mm inset).
- Integrated hydraulic soft-close dampeners and hold-open valves (90° & 105°).
- Stainless steel 316 heavy-duty thrust bearing assemblies.
High-Performance Thermal & Acoustic Barrier
Equipped with multi-chamber insulated aluminum profiles and double or triple-glazed Low-E tempered glass units filled with 90% Argon gas, modern pivot doors achieve ultra-low thermal transmittance (U-factor ≤ 0.85 W/m²K) and superior sound attenuation.
- Acoustic insulation ratings achieving STC 42 to STC 48 noise control.
- Triple EPDM perimeter compression gasket seals.
- Automatic drop-down bottom weather seals preventing air infiltration.
Structural Engineering Analysis: Weatherproofing & Load Transfer Systems
The primary hurdle in engineering large-format exterior aluminum pivot doors lies in achieving watertight integrity and wind-load compliance while maintaining effortless finger-touch operation. Below is a granular specification matrix comparing engineering approaches across high-performance architectural systems.
| Engineering Vector | Standard Commodity Pivot Doors | Novor Premium Architectural Pivot Systems | Compliance / Test Standard |
|---|---|---|---|
| Structural Profile Metallurgy | 6063-T5 Recycled Aluminum (1.4mm - 1.8mm wall) | 6063-T6 / 6060-T66 Virgin Alloy (2.5mm - 4.0mm wall) | ASTM B221 / EN 755-2 |
| Thermal Break Insulation | Non-thermal break or PVC thermal strips | PA66-GF25 Technoform Polyamide Struts (24mm - 34mm) | ISO 10077-2 / NFRC 100 |
| Pivot Hardware Bearing Capacity | Surface-mounted top/bottom pins (Up to 150 kg) | Concealed Hydraulic Heavy-Duty Spindle (Up to 800 kg) | EN 1154 / ANSI A156.4 |
| Wind Pressure Resistance | Class 3 (1200 Pa / 99 mph wind velocity) | Class 5A / E3000 (Up to 3000 Pa / Hurricane Impact Rated) | ASTM E330 / TAS 202 / AS 2047 |
| Water Infiltration Sealing | Single felt strip; flat threshold without drain | Triple EPDM Gaskets + Automatic Drop-Down Bottom Seal | ASTM E331 / EN 12208 (Class 9A) |
| Locking Mechanism | Single-point latch or basic mortise bolt | 5-Point Automatic Motorized Gear Locks + Smart Access | DIN 18251 / EN 12209 / UL 10C |
Future Procurement Trends: What Global Architects & Importers Are Demanding
Analyzing global procurement data from commercial developers, luxury custom homebuilders, and facade engineering consultants reveals four critical design trends shaping the next decade of aluminium pivot door manufacturing in China.
1. Invisible Smart Access & Motorized Synchronization
Modern B2B buyers are moving away from surface-mounted keypads. Next-generation pivot doors incorporate concealed biometric fingerprint sensors, 3D facial recognition cameras, and motorized multi-point lock actuators built directly into the vertical lock stile or pull handle. Electrical power transfers through induction or concealed wiring loops routed through the pivot hinge axis.
2. Ultra-Large Monolithic Glass & SGP Interlayers
Architects in warm climates (Florida, California, Middle East, Australia) favor full-vision pivot doors featuring oversized insulated glass panels. Utilizing SentryGlas® (SGP) structural interlayers, laminated glass panels remain upright even under extreme windstorms, resisting impact forces up to 90 ft/sec while maintaining frameless aesthetic transparency.
3. Low-Carbon Recycled Extrusions & EPD Certification
European and North American commercial project specs increasingly require Environmental Product Declarations (EPD). Sourcing partners in China are adopting hydro-powered low-carbon aluminum billets with recycled scrap content exceeding 75%, drastically lowering the embodied carbon footprint of the building envelope.
Manufacturing Synergy: Three Specialized Industrial Hubs
Novor Front Door Technology Co., Ltd. operates a centralized export hub alongside three dedicated manufacturing facilities, uniting specialized craft with high-volume industrial automation.
Cast Aluminum & Luxury Villa Doors
Located inside China's famous "Door Capital" industrial cluster. Specialized in heavy-duty cast aluminum entrance doors, solid carved aluminum plates, and high-security villa front entries with intricate hand-finished patinas and explosion-proof steel cores.
- Vacuum-assisted precision aluminum plate casting.
- Solid door leaf thicknesses from 70mm to 100mm.
- Integrated multi-point security deadbolts.
Thermal Break Aluminum Doors & Windows
Situated in global aluminum extrusion center Foshan. Focused on high-precision thermal break aluminum profiles, ultra-slim sliding systems, acoustic casement windows, and minimal-sightline architectural glass pivot doors.
- Automated CNC double-head profile cutting lines.
- Corner crimping and polyurethane glue injection systems.
- NFRC and AS2047 thermal and structural testing chambers.
HQ, Steel Security & Fire Rated Doors
Managing international customer service, 3D shop drawing engineering, project management, and production of commercial steel security doors and UL-listed 45-to-90 minute fire-rated steel door assemblies for hotels and multi-family developments.
- UL 10C & BS EN 1634 fire test compliance documentation.
- Consolidated container packing and sea freight logistics.
- Rigorous pre-shipment assembly and quality inspection.
Global B2B Logistics & Quality Assurance Guarantee
Every customized door system undergoes 100% factory pre-assembly and hardware calibration before shipping. To prevent sea-freight corrosion and transit damage over long-distance ocean voyages:
Frequently Asked Questions by B2B Importers, Builders & Architects
Clear, technical answers to critical engineering, customization, and export logistics questions regarding China manufactured aluminum pivot doors.
Which international certifications do your aluminium pivot doors and window systems hold?
Our product lines are tested and certified according to global regional requirements. We supply test reports and certificates including CE Marking (EN 14351-1) for European markets, NFRC energy performance ratings and AAMA physical performance standards for North America, AS 2047 and AS 1288 for Australia, and UL 10C / UL 10B positive pressure ratings for commercial fire-rated doors. All production facilities operate under ISO 9001 quality management systems, with third-party audits performed by TÜV AUSTRIA and Bureau Veritas.
How do oversized aluminum pivot doors prevent water leaks and air infiltration during severe storms?
Watertight integrity is achieved through a multi-tiered engineering approach: First, perimeter compression seals utilize weather-resistant EPDM gaskets around all four sides. Second, the bottom threshold features an automatic concealed drop-down weather seal that lowers automatically as the door leaf closes to compress against the floor sill. Third, integrated perimeter drain channels within the thermal-break sub-frame redirect wind-driven rain outward. For coastal hurricane zones, we provide recessed floor drain troughs coupled with structural SGP laminated glass.
Can you manufacture pivot doors customized to North American wood-framing or European masonry wall construction?
Yes. Our engineering department prepares custom BIM and CAD shop drawings tailored specifically to your project’s wall structure. For US and Canadian markets, frame profiles can be manufactured with integrated nailing fins (flanges) spaced for 2x6 or 2x8 wood stud framing. For European, Middle Eastern, and Australian markets, sub-frames are designed for direct anchor bolting into concrete, brick masonry, or structural steel tubing with thermal flashings.
What hardware brands and smart lock systems can be integrated into your aluminum pivot doors?
We partner with premier hardware manufacturers globally. Standard hardware packages feature German heavy-duty hydraulic pivot hinges and floor closers (such as Dormakaba, Geze, or Hafele) as well as custom engineered top/bottom pivot sets. For locking systems, we offer multi-point mechanical locks or fully automated electronic locks compatible with smart home protocols (Z-Wave, Zigbee, TTLock, Tuya, or dry contact triggers for home automation systems).
What is your minimum order quantity (MOQ) and sample approval process for B2B projects?
We support both custom high-end residential villa projects and multi-unit commercial developments. For custom architectural pivot doors, our MOQ starts at 1 unit. Before mass production, our technical team provides comprehensive 2D elevated shop drawings and 3D cross-section CAD models for sign-off. Material sample kits (aluminum profile extrusions, color finish swatches, glass samples, and gasket swatches) can be dispatched via air express within 3–5 business days.
How are oversized pivot doors packed to prevent damage during ocean container transport?
Oversized pivot doors require specialized crating. The door panel and perimeter frame are typically packed pre-assembled or knocked-down (KD) depending on total dimensions. Units are wrapped in 200-micron anti-scratch film, encased in heavy-duty shock-absorbing bubble wrap, protected with reinforced corner protectors, and sealed inside fumigation-free solid plywood crates with wooden internal cross-bracing. Crates are equipped with lifting points for easy forklift handling at destination ports.
Transform Your Opening with China's Premier Aluminium Pivot Door Manufacturer
Whether you need custom oversized villa entry pivot doors, certified thermal break window packages, or commercial fire-rated door assemblies, our engineering team is ready to analyze your architectural plans.
Send an Inquiry
