Engineering Masterpieces: Top Modern Pivot Door Configurations
Precision-manufactured entrance portals engineered for luxury architectural villas, high-security commercial venues, and modern residential developments.
Top Quality High Glossy Main Entrance Exterior Wood Pivot Entry Doors with Side Lite
Villa Apartment Exterior Modern White Flat Panel Door Front Entry Doors Entrance Pivot Exterior Custom Doors
Modern Design Solid Wood Pivot Entry Door for Villa Finished Surface Manufactured by House Entrance Door
Customizable Aluminum Double Pivot Door with Smart Lock for Outdoor Entry Villa Exterior Main House Security

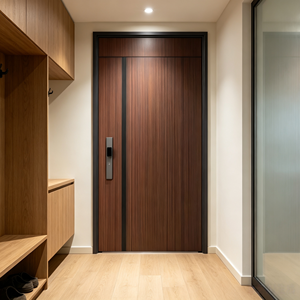

Stainless Steel Swing Pivot Front Entry Door with Glass Modern Design High Performance Weatherproof Exterior Anti-Theft
YUDON DOOR Main Entrance Pivot Door Entry Door Pivot Door with Frame Matte Gray Finish Custom Size Soundproof

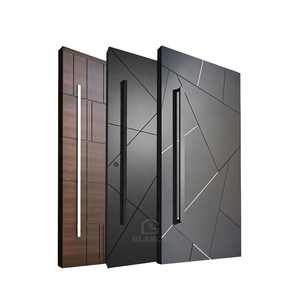

Modern Designed Wooden Exterior Double Pivot Doors Stainless Steel Main Sliding System Waterproof Feature

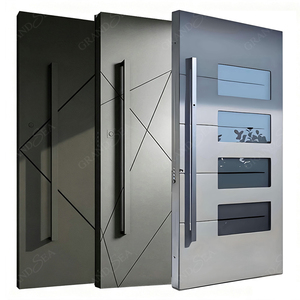

Luxury Modern American Cast Aluminum Smart Armored Entry Door High-end Security Main Entrance Door Solid Wood Pivot
Understanding Modern Pivot Door Mechanics: Load Distribution vs. Butt-Hinged Doors
Architectural entryways have undergone a paradigm shift over the past decade. Where conventional entrance systems relied exclusively on perimeter butt hinges anchored into vertical side jambs, modern high-end architectural specifications prioritize large-scale pivot entry systems. The primary engineering difference lies in the transfer of gravitational vector loads and rotational dynamic force.
Technical Information Gain Insight: Unlike butt hinges that exert high cantilever shear forces onto wall framing—limiting door weight to ~120kg—an offset floor-mounted pivot hinge transfers 95% of the door leaf weight directly into the concrete foundation sub-floor. This mechanical load path enables leaf dimensions exceeding 3,000mm in width and 6,000mm in height with weight thresholds up to 800kg, operated with feather-light opening torque (<15 N).
Hydraulic Dampening & Offset Axis
Equipped with fully integrated, concealed floor spring hydraulics (e.g., German-engineered Dormakaba or Dutch FritsJurgens spindle systems), modern pivot doors feature 360-degree rotation capabilities, self-closing mechanics from 125°, and active hold-open detents at 90°. Internal hydraulic dampening prevents slamming against high wind velocity loads.
Perimeter Weather Seal Engineering
Historical pivot doors struggled with wind-driven rain penetration. Modern Chinese manufacturers overcome this via multi-stage compression EPDM weatherstripping, magnetic drop-down bottom thresholds, and dual-drainage sub-frame extrusions that achieve Class 4 Air Permeability (EN 12207) and Class 9A Water Tightness (EN 12208).
Evolution of Raw Materials: Thermal Break Aluminum, Cast Aluminum & Hybrid Cores
For international buyers and procurement officers sourcing from China, understanding material selection is critical to ensuring compliance with localized building energy codes (such as US Title 24, IECC, European NZEB, and Australian NCC specs).
6063-T6 Extruded Aluminum
Utilizing high-tensile 6063-T6 aluminum profile extrusions with wall thicknesses between 2.5mm and 4.0mm. Polyamide PA66 GF25 thermal break strips isolate thermal bridging, achieving U-factors below 1.4 W/m²K when combined with Low-E argon insulated units.
Cast Aluminum Armored Panels
Heavy-duty solid cast aluminum plates (ranging from 8mm to 20mm thickness) offer zero-corrosion longevity, extreme impact resistance against forced entry, and intricate tactile textures ideal for high-end coastal villas and estate entries.
Fluoropolymer AAMA 2605 Finishes
Surface treatments utilize electrostatic PVDF/fluoropolymer liquid spray or Qualicoat Class 2 powder coatings. This guarantees resistance against chalking, salt spray corrosion (5000-hour testing), and UV degradation in desert and tropical climates.
Future Procurement & Architectural Development Trends (2026–2030)
As the international B2B door supply chain matures, purchasing decisions are moving away from standardized off-the-shelf items toward highly customized, engineered systems. Sourcing directors must align with suppliers offering specific technological capabilities:
1. Smart Access Ecosystem Integration
Modern luxury consumers expect invisible entry automation. Future-proof pivot doors incorporate motorized multi-point lock latching system (e.g., KFV or GU), biometric 3D facial recognition concealed within flush pull handles, Z-Wave/Zigbee smart home hub connectivity, and emergency mechanical key overrides.
2. Extreme Sizing & Structural Glazing
Architectural demand is trending toward floor-to-ceiling glass-and-metal panels up to 6 meters high. Utilizing structural silicone glazing (SSG) technology with SGP structural interlayers (DuPont SentryGlas), modern pivot doors withstand wind pressure loads up to ±5000 Pa (HVHZ hurricane compliant).
3. Pre-Engineered Modular Pre-Hung Kits
To offset rising job-site labor costs in North America, Europe, and Australia, leading Chinese exporters pre-assemble, calibrate, and test-hang complete pivot systems—including outer sub-frames, thresholds, and hidden hydraulic pivots—prior to export boxing, reducing on-site installation time by up to 65%.
4. Low-Carbon Manufacturing & LEED Credits
Top tier factories are integrating recycled aluminum billets (processed via green hydro-power smelting) and non-toxic polyurethane insulation cores to help commercial building developments earn LEED v4 and BREEAM sustainability credits.
Why Partner with Novor Front Door Technology Co., Ltd.?
As a premiere OEM/ODM manufacturer headquartered in Haikou with specialized production hubs across China's main industrial clusters, Novor Front Door provides global buyers with streamlined project coordination, technical shop drawing verification, and rigorous quality control.
Tri-Plant Manufacturing Ecosystem
Yongkang, Zhejiang: Heavy cast aluminum & luxury villa front doors.
Foshan, Guangdong: Thermal break aluminum profile extrusion, CNC machining & sliding/casement/pivot assemblies.
Haikou, Hainan: Corporate HQ, export documentation & steel security/fire door lines.
Strict Quality Certifications
Fully compliant with international testing codes: CE marking for Europe, NFRC thermal ratings & UL 10C fire protection for the USA, AS 2047 for Australia, and ISO 9001 quality management systems. Inspected by third parties such as TÜV AUSTRIA and Bureau Veritas.
End-to-End Export Logistics
Every order undergoes 3D CAD drawing confirmation, physical sample sign-offs, 100% pre-assembly inspection, and protective packaging inside fumigated export-grade wooden cases with protective corner guards for long sea freight journeys.
Frequently Asked Questions by Global Importers & Architects
How do custom modern pivot doors prevent water air leakage around the offset pivot axis? ▼
Air and water tightness around the offset pivot axis are achieved through a dual-defense system. Top and bottom horizontal edges utilize automatic drop-down mechanical EPDM weather seals that actuate upon frame contact. Vertical edges employ dual-density compression EPDM gaskets combined with magnetic seal strips. For extreme weather environments, sub-frame sill extrusions incorporate integrated hidden drainage channels with one-way check valves to discharge wind-driven water exteriorly.
What is the standard production lead time for custom OEM pivot door orders? ▼
Our standard manufacturing lead time is 15 to 30 working days from the date of final 3D shop drawing approval and finish sample sign-off. Large-scale multi-unit commercial developments or villa community projects can be batch-scheduled to align seamlessly with your project's construction milestone schedule.
Can your pivot doors meet regional energy standards like US Title 24, NFRC, or European CE? ▼
Yes. We specifically engineer pivot door thermal breaks and glazing assemblies to match regional code requirements. For North America, we utilize NFRC-certified thermal break aluminum profiles with double or triple Low-E insulated glass units (argon filled) to achieve compliant U-factors and SHGC values. For Europe, our products carry CE marking with full Declarations of Performance (DoP).
What structural preparations are required for installing floor-mounted heavy-duty pivot hinges? ▼
The lower pivot floor plate requires a solid structurally sound concrete sub-floor or reinforced steel structural beam capable of supporting the full vertical point load (up to 800kg depending on door scale). The overhead ceiling or lintel header must also be structurally rigid to house the top guide pin pocket without structural deflection under wind load conditions. Detailed structural loading shop drawings are provided prior to fabrication.
What warranty and technical support is provided for international shipments? ▼
We provide a comprehensive 5-year structural and hardware warranty on all pivot door assemblies. Every order includes CAD installation schematics, step-by-step video installation guides, and direct remote engineering assistance to guide your site installation crew through unboxing, anchoring, and hydraulic dampening calibration.
Transform Your Architectural Entrance Projects
Partner with China's premier pivot door engineers. Contact our engineering team today for technical shop drawings, custom material samples, and direct factory quotation packages.
