A definitive guide for global commercial contractors, real estate developers, building material importers, and architectural specifiers. Authored with technical evaluation metrics from Novor Front Door Technology Co., Ltd.
Information Gain Summary: Unlike standard B2B promotional articles, this engineering whitepaper delves into metallurgy ratios, PA66-GF25 thermal barrier mechanics, Florida Building Code (FBC) hurricane impact compliance, multi-point lock torque tolerances, and real-world supply chain risk mitigation for Chinese door and window procurement.
Over the past two decades, China’s architectural fenestration sector has undergone a profound transformation. Sourcing entrance doors from China is no longer merely a low-cost volume play; it is an exercise in utilizing world-class automated precision engineering, specialized regional industrial clusters, and sophisticated metallurgical treatments. As international building energy codes tighten—such as California’s Title 24, Canada’s NECB, and the European Union’s EPBD directive—top Chinese exporters like Novor Front Door Technology Co., Ltd. have re-engineered structural frameworks to surpass global standards.
China's production capability relies on dedicated industrial clusters. Understanding these geographical specializations is essential for international buyers conducting factory audits and supply chain risk assessments:
Extruded aluminum frames engineered for high tensile strength, extreme structural wind loads, and zero coastal oxidation.
Multi-point steel locking pins, anti-drill manganese plates, and anti-pry frame construction for maximum intrusion defense.
Polyamide PA66-GF25 structural breaks minimizing U-factors down to ≤1.2 W/m²K for extreme heat or freezing environments.
Select buyers often struggle to match structural door typologies with specific project requirements. Below is a comprehensive breakdown of the core entrance door categories manufactured for export.
Cast aluminum doors represent the apex of architectural durability for luxury residential estates and executive villas. Built via solid vacuum casting of pure aluminum alloys, these doors feature solid panel thicknesses ranging from 8mm to 36mm. Unlike wrought iron, cast aluminum is fundamentally impervious to rust, making it the premier choice for humid, salt-rich coastal environments such as the Gulf Cooperation Council (GCC) region, Florida, and coastal Australia.
Key technical highlights include multi-layer fluorocarbon (PVDF) surface spraying, which resists UV degradation and color fading for up to 30 years under severe solar radiation.
Modern architectural design trends heavily favor expansive opening spans, seamless indoor-outdoor transitions, and ultra-wide entry points. Pivot entrance doors utilize heavy-duty hydraulic floor pivots or concealed top-and-bottom axis hinges capable of supporting door leaves weighing over 500 kg (1,100 lbs).
To eliminate thermal bridging in metal doors, engineered polyamide strips (PA66 reinforced with 25% glass fiber) separate the exterior and interior aluminum extrusions. Combined with double- or triple-pane insulated Low-E tempered glass, these doors maintain energy performance while allowing grand scale design.

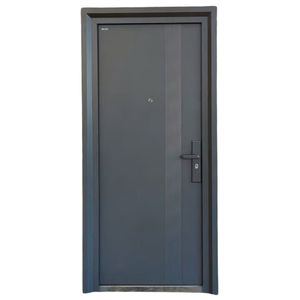

For high-security multi-family residential towers, commercial headquarters, and governmental projects, steel security doors provide unyielding resistance against physical intrusion. Featuring cold-rolled steel casings (1.5mm to 2.0mm frame thickness), internal steel stiffener ribs, and rockwool or polyurethane sound-dampening cores, these assemblies achieve high STC (Sound Transmission Class) ratings up to 45 dB.
Commercial compliance requires strictly certified fire barriers. Factory-certified fire rated doors (45-minute, 60-minute, 90-minute, up to 180-minute ratings) incorporate intumescent perimeter seals that expand upon heat exposure, effectively blocking fire, smoke, and toxic gas propagation.
To assist procurement managers, engineers, and architects in reviewing tender specifications, the matrix below outlines essential technical performance parameters across door types:
| Door Category | Core Material Specification | Thermal Performance (U-Value) | Acoustic Rating (STC) | Target Export Certification |
|---|---|---|---|---|
| Cast Aluminum Villa Door | Solid Cast Aluminum (8-20mm) + PVDF Coating | 1.6 – 2.0 W/m²K | 38 – 42 dB | CE, ISO9001, TÜV Austria |
| Thermal Break Pivot Door | 6063-T6 Extruded Aluminum + PA66 Insulation | 1.1 – 1.4 W/m²K | 35 – 40 dB | NFRC, FBC Impact, AS2047 |
| Armored Steel Security Door | Galvanized / Cold-Rolled Steel (1.8mm) + Ribs | 1.8 – 2.2 W/m²K | 40 – 45 dB | EN 1627 RC3/RC4, UL Listed |
| Commercial Fire Door | Perlite Core / Mineral Board + Steel Leaf | N/A (Fire Rated) | 32 – 38 dB | UL 10C, BS 476, CE EN 1634 |
| Frameless Glass Garage Door | Tempered Mirror / Low-E Glass + Alum Frame | 2.0 – 2.4 W/m²K | 28 – 32 dB | CE, CSA, ANSI Z97.1 |
Exporting entrance doors internationally requires strict adherence to localized regulatory frameworks. A failure to present verified third-party laboratory test reports can result in customs delays, site rejection by local building inspectors, or severe financial liability.
Importers bringing doors into North America must satisfy energy performance and structural safety metrics:
Entrance doors destined for the EU require CE marking in accordance with EN 14351-1 (for external pedestrian doorsets). Key performance indicators listed in the Declaration of Performance (DoP) include Air Permeability (EN 12207), Watertightness (EN 12208), and Resistance to Wind Load (EN 12210). Anti-burglary characteristics must follow EN 1627 standards spanning resistance classes RC1 through RC4.
Under AS 2047, all external doors and glazed window assemblies must undergo rigorous physical testing for deflection, operating force, air infiltration, and water penetration resistance. Stainless steel security mesh doors must also comply with AS 5039.
As the construction landscape evolves towards smart buildings and carbon-neutral targets, global door sourcing is being shaped by several key technological trends:
Modern entrance doors are increasingly requested with factory-preinstalled motorized multi-point locks, hidden 3D facial recognition cameras, fingerprint sensors, and full integration into home automation protocols (KNX, Zigbee, Z-Wave).
Top Chinese suppliers are incorporating recycled aluminum billets and eco-friendly powder coatings (zero-VOC), aligning with LEED and BREEAM green building certifications for major commercial projects.
Visible sightlines are shrinking. Exterior doors now feature concealed floor hinges, zero-threshold drain channels, and floor-to-ceiling single-leaf designs reaching heights of up to 4.5 meters.
Navigating global procurement requires a manufacturing partner with deep technical expertise, robust quality control infrastructure, and verified export capability. Novor Front Door Technology Co., Ltd. stands out as a top-tier manufacturer and exporter for the following structural reasons:
Our product lines are rigorously tested and certified to CE (Europe), UL (USA commercial fire safety), NFRC (US energy ratings), AS 2047 (Australia), CSA (Canada), and ISO 9001 quality management requirements. We regularly arrange third-party factory audits and product inspections through accredited agencies such as TÜV AUSTRIA and Bureau Veritas. Series-specific test reports are provided with all project tenders.
Standard lead time ranges from 15 to 30 days following shop drawing approval and color sample sign-off. For multi-phase real estate developments or large commercial contracts, production schedules can be batched to sync with your site construction timeline.
Yes. Our engineering division pre-sizes door frames, nail fins, mounting flanges, and sub-frame extension tracks tailored precisely to local construction methods, whether it is standard US 2x6 wood framing, European masonry blockwork, or commercial steel stud structures.
Absolutely. We provide comprehensive OEM/ODM manufacturing. This includes custom structural sizing, specialized extrusion dies, bespoke hardware branding, private logo laser etching, custom glass tinting, and tailor-made packaging for distributors and brand owners worldwide.
Each unit is wrapped in scratch-resistant protective film, reinforced with heavy-duty rubber corner guards, wrapped in bubble cushioning, and packed inside fully enclosed export-grade plywood crates. Containers are securely braced using steel strapping and dunnage bags to absorb transit forces.
We provide a comprehensive 5-year structural and mechanical warranty on door frame structures, aluminum profiles, and insulated glass units, alongside a 2-year warranty on electronic hardware components. This is backed by installation documentation and 24/7 remote technical video support for field engineers.
Connect directly with our engineering and project quotation specialists today. Receive accurate shop drawings, structural calculations, and competitive factory-direct pricing within 24 hours.
