Featured Tempered Glass Entry Doors & Architectural Envelopes
Engineered for high thermal resistance, structural integrity, and architectural luxury. Fully customizable to meet North American NFRC, European CE, and Australian AS 2047 building standards.
Luxury Villa Aluminum Door Unique Custom Design Side Opening Tuya Smart Compatible Waterproof Penthouse-Grade Security Anti-Pry
Penthouse-grade security entrance system featuring Tuya IoT smart locks, 12mm double-tempered Low-E insulated glass, and reinforced T6 aluminum anti-pry sub-frames.
Bespoke Aluminum Entrance Doors and Window Systems for Commercial Buildings, Offices, Hotels and Hospitality Projects
Heavy-duty commercial glass entrance facades equipped with hydraulic floor pivots, SGCC toughened tempered safety glass, and customizable anodized aluminum profiles.
Fuson Soundproof Customized Casement Aluminium Alloy Glass Door Exterior Security Entrance Steel Main Doors
Acoustically insulated entrance door engineered with multi-chamber aluminum framing, dual EPDM weather stripping, and acoustic PVB tempered laminated glass.

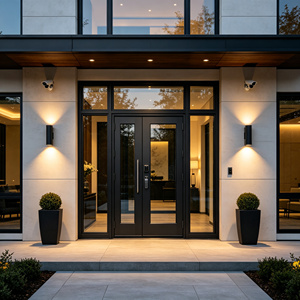

Thermal Break Aluminum Security Entry Door Glazed Ballistic Glass Waterproof Exterior Front Door
Ultra-thermal polyamide PA66 insulated profile integrated with multi-layer ballistic-grade tempered laminated glazing for high-security residential estates.

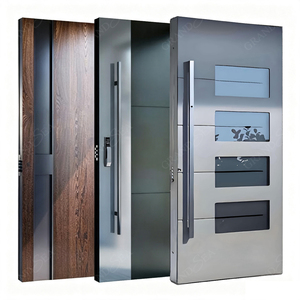

Luxury Modern American-style Aluminum Entry Door Smart Security Steel Armored Front Entrance Door Solid Wood Pivot Door For Home
Modern architectural pivot front entrance featuring an armored steel core, tempered privacy glass inserts, biometric access control, and real wood cladding.
ZEKIN Customized Aluminum Patio Balcony Sliding Doors Double Tempered Glass Heavy Duty Glass Door Aluminum Sliding Doors
Heavy-duty aluminum patio sliding door system constructed with double 6mm tempered Low-E glass, argon gas filling, and heavy-load stainless steel track rollers.
New Custom Made Luxury Modern Aluminum Alloy Steel Pivot Entry Front Door for Villa and Hotel Exterior House
Oversized luxury villa pivot door with concealed hydraulic self-closing hinges, tinted toughened security glass sidelights, and weather-resistant powder coatings.
ZEKIN Modern Style Main Entrance Door Aluminum Entry Front Doors Against Theft Bulletproof Security Door
Anti-theft aluminum main entrance featuring multi-bolt locking gears, anti-shatter tempered laminated security glazing, and 3000-hour salt-spray corrosion protection.
Engineering Principles of Architectural Tempered Glass Entry Doors
An in-depth analysis of structural integrity, thermal break performance, safety glazing compliance, and global B2B procurement standards.
In modern architectural design, the entry door serves as both the primary thermal envelope threshold and the definitive aesthetic anchor of high-end residential villas and commercial complexes. As a leading manufacturer based in China, Novor Front Door Technology Co., Ltd. specializes in engineering heavy-duty, code-compliant tempered glass entry doors that harmonize structural security, solar control, and refined contemporary design.
Tempered safety glass—also recognized as toughened glass—undergoes controlled thermal processing to induce compressive surface stresses exceeding 90 MPa (MegaPascals). When integrated into extruded T6-6063 architectural aluminum frames or armored steel cores, these door systems deliver up to five times the bending strength of conventional annealed glass while ensuring safe break-safe patterns (crumbling into dull granular chunks) upon catastrophic impact.
1. Structural Anatomy & Thermal Insulation (U-Value Optimization)
To meet aggressive carbon-neutrality mandates such as California Title 24, US IECC 2024, and European EPBD directives, standard single-pane glass entry doors are no longer sufficient. Modern export-grade tempered glass doors rely on advanced Insulated Glazing Units (IGUs) combined with polyamide (PA66-GF25) thermal break structural profiles.
- Double/Triple Insulated Glazing Units (IGUs): Standard configurations utilize 6mm Tempered Outer Pane + 12A/14A Gas Spacer (filled with 90%+ pure Argon gas) + 6mm Tempered Inner Low-E Pane. This setup drastically curbs radiant heat transfer.
- Low-Emissivity (Low-E) Coatings: Spectrally selective silver nanolayers applied via magnetron sputtering reflect long-wave infrared heat back outward in hot climates or inward during cold winters, optimizing the Solar Heat Gain Coefficient (SHGC) down to 0.22.
- Polyamide PA66 Thermal Barrier: Extruded aluminum profiles are split into interior and exterior chambers connected by 24mm to 34mm reinforced polyamide strips, disrupting thermal conduction and eliminating frame condensation.
2. Specialized Glazing Interlayers: PVB vs. SGP Laminated Safety Glass
For high-security entry points, coastal hurricane zones, and commercial venues, standard tempered glass is frequently combined into laminated configurations. Selecting the proper interlayer is vital for project compliance:
While Polyvinyl Butyral (PVB) is the industry baseline for general soundproofing (STC acoustic ratings up to 42dB) and standard forced-entry prevention, SentryGlas® (SGP) ionoplast interlayers provide five times the tear strength and 100 times the rigidity. SGP laminated tempered glass remains structurally rigid even if both glass panes suffer severe impact—a non-negotiable requirement for Florida High-Velocity Hurricane Zones (HVHZ) and ballistic security entrances.
| Glazing System Type | Thermal Transmittance (U-Value) | Solar Heat Gain (SHGC) | Acoustic Rating (STC) | Impact / Security Standard |
|---|---|---|---|---|
| Monolithic 10mm/12mm Tempered Safety Glass | 5.2 – 5.8 W/m²K | 0.75 – 0.82 | 31 – 33 dB | ANSI Z97.1 / EN 12150 |
| Double Low-E Tempered IGU (6mm + 12Argon + 6mm) | 1.4 – 1.8 W/m²K | 0.28 – 0.38 | 36 – 38 dB | NFRC / CE EN 14351-1 |
| Triple Low-E Thermal Break IGU (5mm×3 + 12A×2) | 0.9 – 1.2 W/m²K | 0.22 – 0.30 | 38 – 40 dB | Passivhaus / Energy Star |
| SGP Laminated Tempered Hurricane Impact Glass | 1.6 – 2.1 W/m²K | 0.30 – 0.42 | 40 – 44 dB | Florida HVHZ / ASTM E1996 |
Future Procurement & Product Trends for Glass Entry Doors
Strategic market insights for importers, architectural developers, and commercial procurement managers preparing for the next decade of building envelope evolution.
1. Ultra-Slim Sightlines & Oversized Pivot Formats
Architectural demand is rapidly shifting toward grand 3-to-4-meter-tall pivot entrances. Low-profile concealed hinges and structural glass bonding allow minimal aluminum exposure, maximizing natural day-lighting without compromising structural wind-load tolerance.
2. Smart Access & Motorized Multi-Point Locking
Mechanical keys are being superseded by IoT ecosystem integration. Future-proof entry systems incorporate Tuya, Zigbee, or biometric facial recognition into the door leaf, driving motorized multi-bolt latching systems with emergency battery backup.
3. Consolidated Envelope Procurement
Global B2B buyers are moving away from piecemeal sourcing. Single-source manufacturers capable of delivering synchronized color finishes, matching hardware, and certified performance across entry doors, windows, and fire doors hold a decisive cost advantage.
Why Source from Novor Front Door Technology Co., Ltd.
Over 20 years of manufacturing mastery backed by three specialized production bases, comprehensive international certifications, and end-to-end OEM/ODM engineering support.
Novor Front Door operates under a specialized cluster manufacturing framework. Rather than forcing diverse products onto generic assembly lines, we operate dedicated specialized plants to ensure world-class precision in casting, profile extrusion, thermal break assembly, and fire-door core filling:
Yongkang, Zhejiang Base
Situated in China's famous "Door Capital" industrial cluster; focused on heavy cast aluminum villa entry doors and luxury custom security gates.
Foshan, Guangdong Base
Located in the heart of China's aluminum extrusion hub; specializing in thermal break sliding, casement, and folding glass door systems.
Haikou, Hainan HQ & Plant
International export coordination office and manufacturing plant dedicated to steel security doors, commercial fire doors, and global export crating.
Global Code Compliance
Fully tested and certified to CE, UL, NFRC, AS 2047, CSA, and ISO 9001 standards. Third-party factory inspections conducted by TÜV AUSTRIA and Bureau Veritas.
15–30 Day Delivery
Rapid manufacturing turnarounds post drawing approval. Multi-phase construction orders are scheduled into staggered container shipments aligned with site timelines.
Export-Grade Packing
Every glass door panel is wrapped in anti-scratch protective film, corner-guarded, and secured within customfumigated wooden crates to guarantee zero transit damage during sea freight.
Frequently Asked Questions for B2B Importers & Contractors
Clear, engineering-backed answers regarding certifications, thermal performance, custom specifications, and international shipping protocols.
Which international building code certifications do your tempered glass doors hold?
How do you prevent spontaneous glass breakage caused by Nickel Sulfide (NiS) inclusions?
What is the typical production lead time for OEM/ODM custom orders?
Can your glass entry doors be engineered for high-velocity hurricane zones (HVHZ)?
What thermal performance (U-value) can your entry door systems achieve?
What options are available for custom sizes, surface finishes, and smart hardware?
How are oversized glass entry doors packaged to prevent damage during sea freight transit?
What warranty and technical support services do you provide post-delivery?
Start Your Project Procurement with China's Premier Manufacturer
Send us your architectural drawings, opening schedules, or tender requirements. Our project engineers will deliver a comprehensive technical proposal and competitive factory-direct quotation within 24 hours.
