High-Performance Thermal Break Aluminum & Security Door Series
Factory-direct engineered architectural entry systems compliant with international structural, acoustic, and thermal code standards.
Modern Large Wrought Iron Pivot Door Entry Custom Design Exterior Front Security Anti-Theft for Apartment Outdoor Hall Villa
YUDON DOOR Main Entrance Pivot Door Entry Door Pivot Door with Frame Matte Gray Finish Custom Size Soundproof for Villa
Australian Standard Casement Door Aluminum Alloy Doors and Windows Residential Home Glass Modern Casement Swing Door

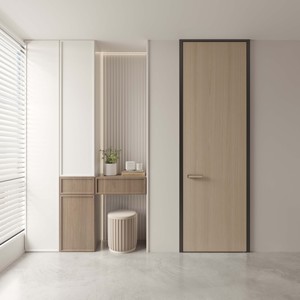

Modern Design High-Performance Aluminum-Wooden Interior Doors with Elegant Honeycomb Panels Superior Insulation
American Standard House Black Metal Patio Exterior Thermal Break Aluminum Doors And Windows
American Villa Customized Aged Copper Finished Aluminum 3D Vertical Wave Line Texture Modern Front Security Entry Door
Elegant Modern Aluminum Alloy Anti-Theft Waterproof Swing Entry Door Sidelights for Villa USA Apartment Front Porch Exterior

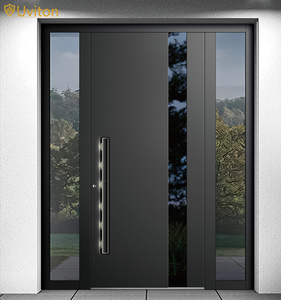

Foshan Factory Direct Sale Black Aluminum Door Private Residential Apartment Front Door Exterior Main Gate Privacy Glass
The Thermal Break Revolution in Architectural Aluminum Doors
In modern building envelope engineering, standard solid aluminum alloy frames act as thermal highways—rapidly conducting external heat or sub-zero ambient temperatures directly into the interior. As global building codes transition toward Net-Zero Carbon standards (such as California Title 24, European Union EPBD, and Australia NCC), commercial contractors and architectural developers require high-performance thermal insulation solutions. A leading custom OEM thermal break aluminum door exporter bridges this gap by engineering composite aluminum extrusions structurally joined by non-conductive polyamide barriers.
At the core of this engineering innovation is the integration of **Polyamide 66 reinforced with 25% short glass fiber (PA66-GF25)** insulation strips. These thermal struts divide the exterior and interior extruded aluminum profiles. Standard aluminum exhibits a high thermal conductivity rate of approximately $160 \text{ W/m}\cdot\text{K}$, whereas PA66-GF25 insulated strips boast a thermal conductivity of merely $0.3 \text{ W/m}\cdot\text{K}$—representing a **500-fold reduction in thermal energy transfer**. This precise thermal break mechanism drastically lowers overall frame U-factors, reduces HVAC energy consumption, and mitigates internal condensation risk (CRF > 70).
PA66-GF25 Thermal Struts
Technoform polyamide insulation strips designed to withstand mechanical shear stress up to $80 \text{ N/mm}^2$ while ensuring optimal heat flow suppression across violent climate gradients.
6063-T6 Extrusion Alloys
Architectural grade high-density aluminum billets heat-treated to T6 temper, delivering ultimate tensile strength exceeding $205 \text{ MPa}$ for massive, structural pivot and swing openings.
Fluorocarbon PVDF Coating
AAMA 2605 compliant surface treatments guaranteeing 20+ years of resistance against coastal salt spray, intense atmospheric UV degradation, and chemical oxidation.
The Future of Architectural Door Procurement: 2025–2035 Trends
The international fenestration and door manufacturing landscape is undergoing a structural evolution driven by strict carbon neutrality regulations, smart home ecosystem integration, and demanding architectural aesthetics. For global project developers, general contractors, and door wholesalers, sourcing directly from specialized custom OEM thermal break aluminum door exporters provides unmatched flexibility and supply chain efficiency.
1. Net-Zero Energy & Low U-Factor Mandates
Procurement choices are increasingly defined by thermal performance metrics. Future door assemblies must achieve $U \le 0.18 \text{ BTU/h}\cdot\text{ft}^2\cdot^\circ\text{F}$ ($1.0 \text{ W/m}^2\cdot\text{K}$). Dual and triple-chambered thermal break profiles with multi-cavity insulation foam filling will become standard across North American and European building developments.
2. Oversized Architectural & Flush Pivot Entries
Modern luxury architectural designs heavily emphasize floor-to-ceiling glass expanses and massive statement entry doors. Oversized pivot doors—reaching widths of 2.5 meters and heights over 4 meters—demand reinforced thermal break extrusions, concealed heavy-duty hydraulic hinges, and automated multi-point lock systems.
3. Smart IoT Access & Concealed Hardware
Commercial and luxury residential buyers require seamless integration of biometric fingerprint scanners, facial recognition cameras, and smart-home motorized latching systems without compromising the structural thermal break layer or frame weatherproofing seals.
Global Door Specification & Regional Certification Benchmark
Comprehensive engineering compliance requirements verified by independent third-party laboratories.
| Target Region | Primary Certification / Code | Thermal U-Factor Standard | Acoustic Noise Reduction | Ideal Thermal Break Profile |
|---|---|---|---|---|
| United States & Canada | NFRC, ASTM E1996, Florida HVHZ, UL 10C | U-Factor ≤ 0.22 - 0.16 BTU/h·ft²·°F | STC 38 - 45 dB | 65mm - 85mm Multi-Cavity PA66 Strut + Low-E Triple Glaze |
| European Union & UK | CE Mark, EN 14351-1, UKCA, PAS 24 | U-Value ≤ 1.0 - 1.4 W/m²·K | Rw 40 - 48 dB | 75mm Thermally Broken System with Foam Core Strips |
| Australia & New Zealand | AS 2047, AS 1288, WERS Energy Rating | U-Value ≤ 1.8 - 2.2 W/m²·K | Rw 35 - 42 dB | Australian Standard Casement/Pivot Profile with EPDM Weather Seals |
| Middle East (GCC) | SASO, ESMA, MoIAT High-Temp Resistance | SHGC ≤ 0.20 (Solar Heat Gain Focus) | STC 35 - 40 dB | UV-Resistant PVDF Coating + Thermal Break Heat Shielding |
Enterprise OEM/ODM Manufacturing Infrastructure
Novor Front Door Technology Co., Ltd. operates a multi-facility production ecosystem specialized by material and door category.
Yongkang Plant: Cast Aluminum Doors
Located in China's "Door Capital" industrial cluster. Specializes in luxury villa doors, heavy cast aluminum main entry gates, and high-security structural anti-theft assemblies.
Foshan Plant: Thermal Break Extrusions
Situated in Guangdong's precision aluminum hub. Dedicated to high-precision thermal break window/door profiling, multi-point lock hardware fitting, and Low-E glass assembly.
Haikou Headquarters & Export Logistics
Coordinates overseas project consulting, shop drawing approvals (CAD/Revit 3D modeling), steel fire-door lines, and export shipping crating under ISO 9001 quality systems.
