Engineered Front Entry & Architectural Door Series
Explore our CE, UL & NFRC certified export-grade pivot systems, thermal break aluminum doors, and security entrances crafted for bulk Mexican project procurement.

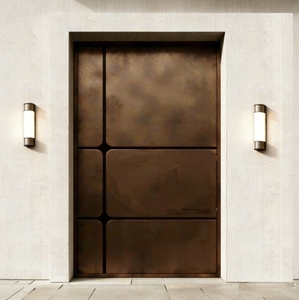

Modern Style Entry Pivot Door with Cash Coupon Promotion
Luxury Modern Metal Main Entrance Pivot Door with Smart Lock

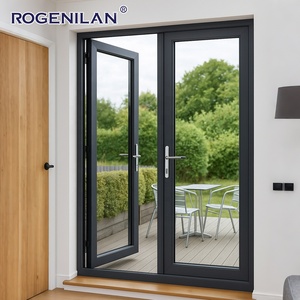

Customized Size Double Large Glass Fixed French Aluminum Door

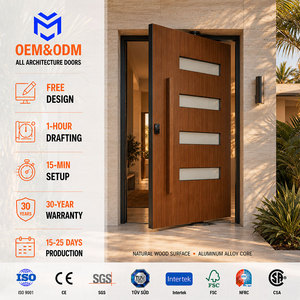

Customized Luxury Aluminum Solid Wood Exterior Front Pivot Door
Thermal Break Hurricane-Proof Soundproof Glazed Folding Door

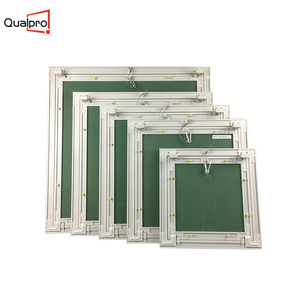

600x600 Commercial Heavy-Duty Aluminum Access Door AP7710
AAMA Certified Thermal Break Aluminum Pivot Front Door Sidelights

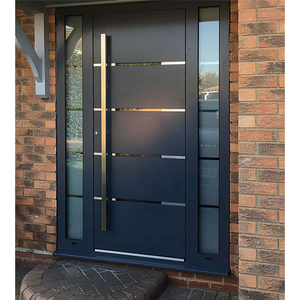

High-Security Exterior Steel Single Front Entry Gate Door
Custom OEM Pivot Door Manufacturing for Mexican Architectural & Commercial Demands
In modern Mexican residential and commercial architecture—ranging from the high-end private compounds of Monterrey and Guadalajara to the luxury eco-resorts of Riviera Maya and Los Cabos—the entrance door has evolved from a functional barrier into a central architectural statement. Large-format custom OEM pivot doors have captured immense market share due to their ability to span immense heights (exceeding 3.5 to 5 meters) and widths (up to 2.2 meters) without the structural sag, hinge stress, or bulky sub-frames associated with traditional side-hinged entry systems.
As a leading Chinese OEM/ODM exporter specializing in custom pivot doors for North and Central America, Novor Front Door Technology Co., Ltd. integrates high-precision aluminum extrusion technology, marine-grade anti-corrosion surface treatments, and advanced concealed floor-pivot hardware to satisfy the exacting demands of Mexican architects, structural engineers, and general contractors.
Key Insight for Mexican Procurement Officers & Importers
Standard imported pivot doors often fail under Mexico's intense UV index, high thermal expansion coefficients in desert regions, and salt-spray corrosion in coastal resort corridors. Our OEM pivot systems incorporate PA66-GF25 thermal break strip insulation, heavy-duty floor springs rated for 500kg+ leaf weights, and AAMA 2605-compliant PVDF coatings designed to endure 3,000 hours of continuous coastal salt spray.
Understanding the micro-climates and seismic building codes across Mexico is fundamental when engineering exterior pivot doors. The architectural demands of Mexico City (CDMX), situated in a seismic zone at 2,240 meters elevation, differ drastically from those of Cancún or Puerto Vallarta, where tropical hurricane resistance (DP60 rating) and high-wind structural deflections dominate structural calculations.
Concealed Heavy-Duty Pivot Hardware
Utilizing German and Dutch hydraulic floor pivot systems (FritsJurgens / Dormakaba compatible) with 360° rotational freedom, hold-open settings at 90°, adjustable closing speed, and zero floor excavation requirements for post-tensioned Mexican slabs.
Thermal Break 6063-T6 Extrusions
High-tensile aluminum alloy frames equipped with 24mm polyamide (PA66) thermal barriers. Effectively blocks thermal conductivity in desert regions like Sonora and coastal areas, lowering HVAC loads and achieving compliance with NOM-008-ENER thermal metrics.
Advanced Glazing & Smart Locks
Fully customizable double/triple tempered Low-E glass, PVB laminated hurricane impact glass (11.52mm to 17.52mm), and multi-point motorized biometric smart locking systems compatible with control systems like Control4 and Crestron.
Tailored OEM Pivot Door Applications for Mexico's Diverse Zones
From coastal hurricane resistance to high-altitude urban acoustic isolation, our custom pivot doors are engineered for Mexico's micro-climates.
Riviera Maya, Cancún & Puerto Vallarta
Coastal Salt-Spray & Hurricane Protection: Extreme humidity and airborne salt require marine-grade anodizing or PVDF 3-coat finishes (AAMA 2605). Our doors integrate SGP laminated impact glass, EPDM perimeter weather-stripping, and stainless steel 316 internal components to resist corrosion and handle wind loads exceeding 3,000 Pa (DP60).
Mexico City (CDMX) & Central Valley
Acoustic Isolation & Seismic Performance: CDMX's urban density and seismic activity demand flexible frame anchoring systems and high sound transmission resistance. Our doors feature acoustic laminated glass achieving STC 42+ ratings, combined with anti-burglary multi-point deadbolts to deliver urban privacy and peace of mind.
Los Cabos & Baja California Peninsula
Extreme Solar Heat Gain Control: Intense solar radiation in Baja California can cause dark exterior door panels to bow or transfer excessive heat indoors. Our thermal break profiles feature dual-tone finishes and Low-E argon-filled glazing with Solar Heat Gain Coefficients (SHGC) under 0.22, keeping indoor air crisp and cool.
Monterrey & Guadalajara Luxury Estates
Grand Architectural Scale & Smart Security: High-net-worth gated communities in San Pedro Garza García (Monterrey) demand grand luxury entrances up to 4.5m tall. We supply custom cast aluminum embedded panels, real wood veneer laminates (Teak, Walnut, Oak), and face-recognition smart locks connected to home automation systems.
OEM Engineering Specifications: Pivot Door vs Standard Door Systems
Technical parameter breakdown for project managers, structural engineers, and architectural specifiers in Mexico.
| Performance Metric | Novor OEM Heavy Pivot Door | Standard Hinged Front Door | Commercial Sliding Glass Door |
|---|---|---|---|
| Maximum Door Height | Up to 5,000 mm (5.0 Meters) | Max 2,400 mm (2.4 Meters) | Max 3,200 mm (3.2 Meters) |
| Maximum Leaf Weight Capacity | 500 kg – 800 kg per Leaf | 90 kg – 120 kg per Leaf | 150 kg – 250 kg per Panel |
| Frame Material & Alloy | Extruded Aluminum 6063-T6 (2.5-3.0mm wall) | Standard Aluminum 6063-T5 (1.4mm wall) | Commercial Aluminum (1.8-2.0mm wall) |
| Thermal Insulation (U-Factor) | U ≤ 1.4 W/m²·K (Thermal Break PA66) | U ≤ 2.8 W/m²·K (Non-Thermal Break) | U ≤ 2.0 W/m²·K (Basic Thermal Break) |
| Wind Pressure Resistance | DP60 / 3,000 Pa (ASTM E330 / AAMA) | DP30 / 1,500 Pa | DP45 / 2,250 Pa |
| Acoustic Rating (STC) | STC 38 – STC 44 dB | STC 28 – STC 32 dB | STC 32 – STC 36 dB |
| Pivot Hardware Lifespan | 1,000,000 Tested Cycles (Floor Spring) | 100,000 Tested Cycles (Butt Hinges) | 250,000 Tested Cycles (Rollers) |
| Surface Finish Standard | AAMA 2605 PVDF Coating (10-Year Warranty) | Standard Powder Coating | Standard Anodized 15 microns |
Key Market Trends Driving Pivot Door Procurement in Mexico
Why Mexican developers, importers, and architects are transitioning to factory-direct OEM pivot door solutions.
Mexico's construction sector is undergoing a major transformation. Driven by high domestic luxury housing demand and nearshoring commercial investments, architectural preferences are shifting toward contemporary minimalist designs characterized by clean geometric lines, floor-to-ceiling glass facades, and monumental pivot entrances.
1. Minimalist Profiles & Concealed Frames
Mexican architects prefer ultra-slim sightlines where the door frame integrates into the surrounding stone, plaster, or curtain wall. Our OEM pivot designs feature flush sash transitions, hidden hinges, and integrated LED accent strips built into the vertical stiles.
2. Strict Energy & NOM Efficiency Metrics
With electricity costs rising across Northern Mexico, compliance with NOM-008-ENER-2001 (Energy Efficiency for Building Envelopes) is now critical. Integrating argon-filled Low-E insulated glass units into pivot doors reduces indoor thermal load significantly.
3. Biometric & Smart Lock Integration
Keyless access is standard in upscale Mexican residential developments. Our pivot doors are pre-wired during OEM assembly to support motorized multi-point locks, 3D facial recognition handles, keypad entry, and smartphone Bluetooth control.
Factory-Direct Engineering Power & OEM Capabilities
Over 20 years of manufacturing excellence supported by 3 specialized production plants across China.
Novor Front Door Technology Co., Ltd. operates specialized manufacturing bases in Foshan (Guangdong) for thermal break aluminum doors and windows, Yongkang (Zhejiang) for luxury cast aluminum entry doors, and Haikou (Hainan) for export operations and steel security assemblies. This structure ensures every pivot door series is built by dedicated technicians using state-of-the-art CNC machining centers.
Full CAD & 3D Shop Drawings
Before production starts, our engineering team provides complete AutoCAD shop drawings, structural wind load calculations, and 3D door models for client approval, ensuring exact fit for your rough openings.
Ocean Freight Wooden Crate Protection
Every custom pivot door is wrapped in protective scratch-proof film, fitted with heavy-duty plastic corner guards, and encased in fully sealed export-grade plywood crates to guarantee 100% damage-free delivery to Mexican ports like Manzanillo and Veracruz.
5-Year Warranty & Remote Technical Support
We back our pivot doors with a 5-year warranty on aluminum frames and glass, alongside 3-year warranties on pivot hardware. We provide installation manuals and real-time video installation support for contractors in Mexico.
Frequently Asked Questions by Mexican Buyers & Developers
Clear technical answers regarding logistics, customs documentation, OEM customization, and installation in Mexico.
What is the standard production lead time for OEM pivot door orders to Mexico?
Can you manufacture oversized pivot doors exceeding 4 meters in height?
How do your products handle coastal salt-spray in regions like Cancún or Puerto Vallarta?
Do you assist with Mexican customs clearance and pedimento documentation?
What pivot hardware brands do you integrate into your door leaves?
What is your Minimum Order Quantity (MOQ) for custom OEM orders?
Ready to Import Custom OEM Pivot Doors for Your Project in Mexico?
Send us your architectural drawings, rough opening schedule, or specification details. Our experienced project engineers will provide complete CAD drawings and a competitive direct factory quote within 24 hours.
